Enerhuis
-
Eco Pro
100%绿色电力加热,最高能效,环保省心
-
100%绿色能源加热仅用绿色电力加热家庭热系统,无需电网,环保安心。
-
智能节能 高效利用发电站无盈余时自动停止,能效 η=100%,实现真正节能。
-
便捷控制 一键切换显示屏轻松设置或取消 ECO Pro 模式,智能管理家庭热系统。
-
-
Eco
智能切换电源,优选盈余或低谷电,舒适省钱
-
智能电源切换能源收集器可自主切换电站盈余电力与电网电力,持续加热家庭热系统。
-
高性价比加热优先使用电站盈余电量或电价谷价电力,实现舒适同时节省成本。
-
灵活控制 满足多需求通过显示屏可自动获取或手动设置电价谷价,随时开启或退出 ECO 模式。
-
-
Fast
全功率极速加热,短时间即可享受温暖
-
极速加热无论绿色能源情况如何,产品以最大功率快速加热家庭热系统,短时间内舒适可用。
-
全功率电力供应同时使用电站和电网全功率供电,保证快速升温。
-
灵活定时控制通过显示屏设置开启时间和加热时长,随时开启或退出 FAST 模式,满足多样需求。
-
-

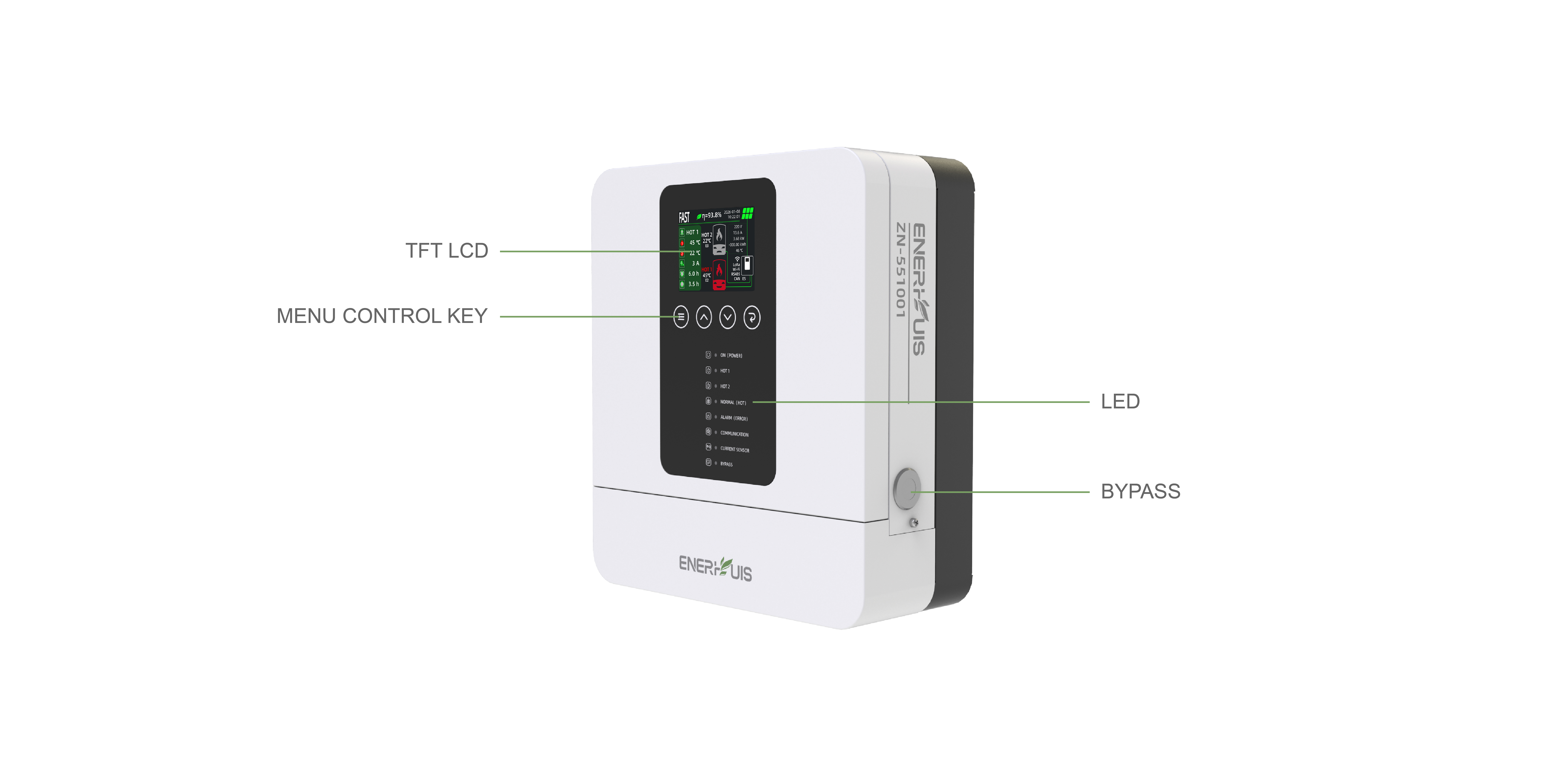

Bypass
直接满功率输出,安装即用,操作灵活
-
直接全功率输出绕过能源收集器的自动调节功能,直接以输入功率驱动加热设备,确保满功率输出。
-
安装默认模式设备初始安装默认开启旁路模式,按键处于弹起状态,无需额外设置即可运行。
-
灵活切换按下按键即可切断旁路模式,进入屏幕设置的其他模式,实现多样化控制。
-
-
Eco Pro
-
Eco
-
Fast
-
Bypass
Technical Specifications
-
Download

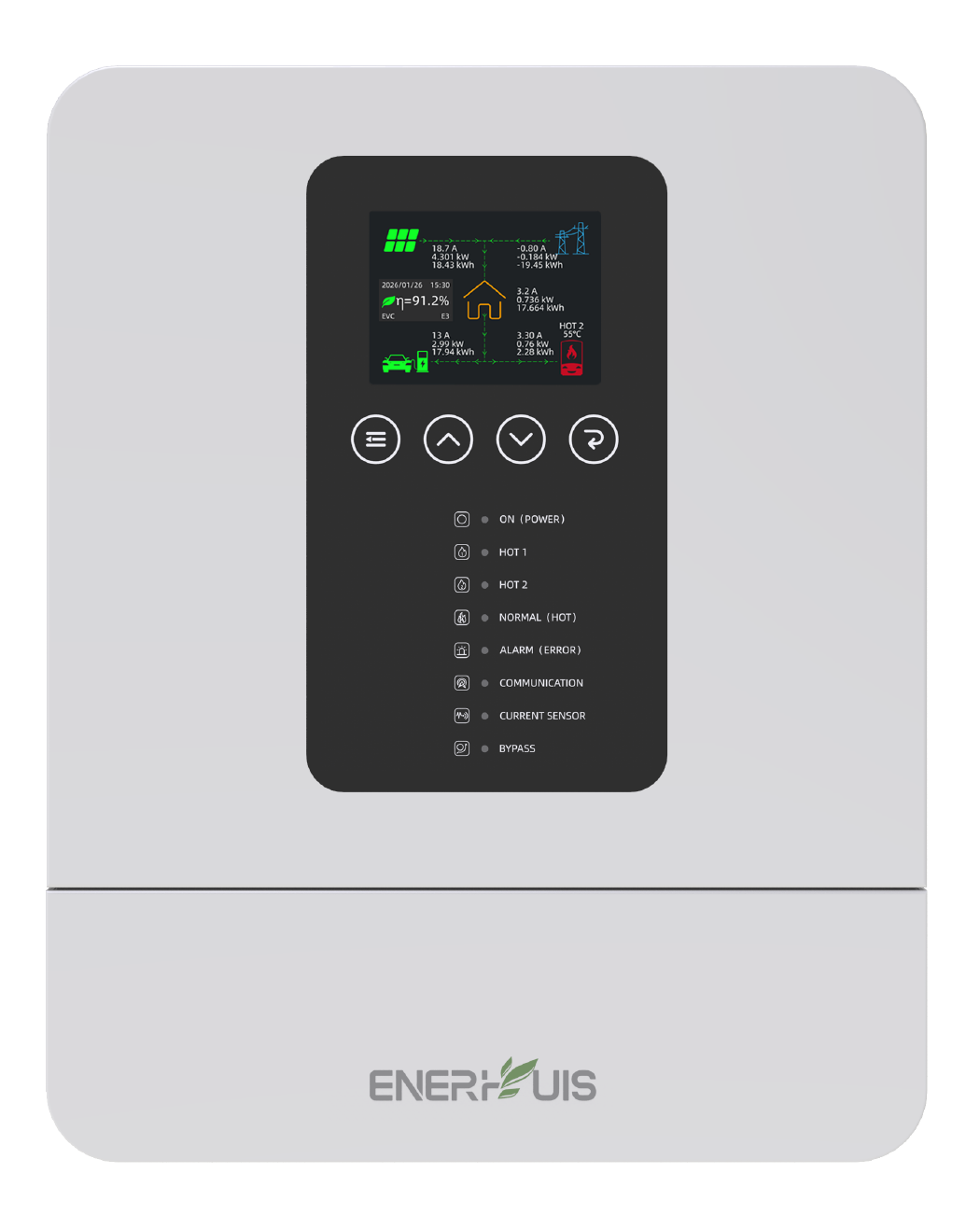

SEHR372231S1
Input Voltage:
230V+10%

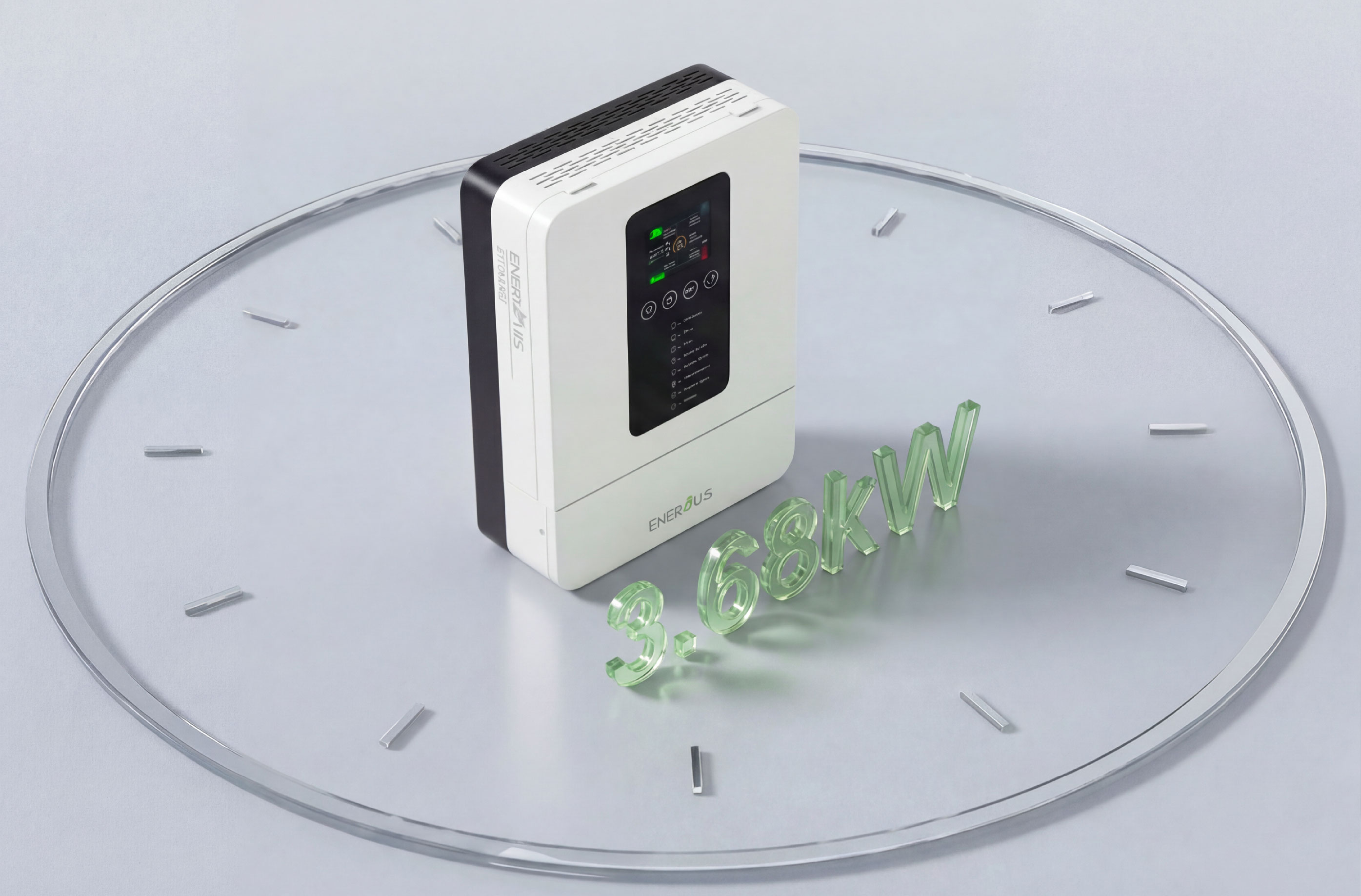

Output Power:
0.1-3.68kW
Output:
2 (Optional priority operation)
Current Range:
0~16A
Temperature Probe:
PT1000
Power Conversion Efficiency:
97.8% (Typical)

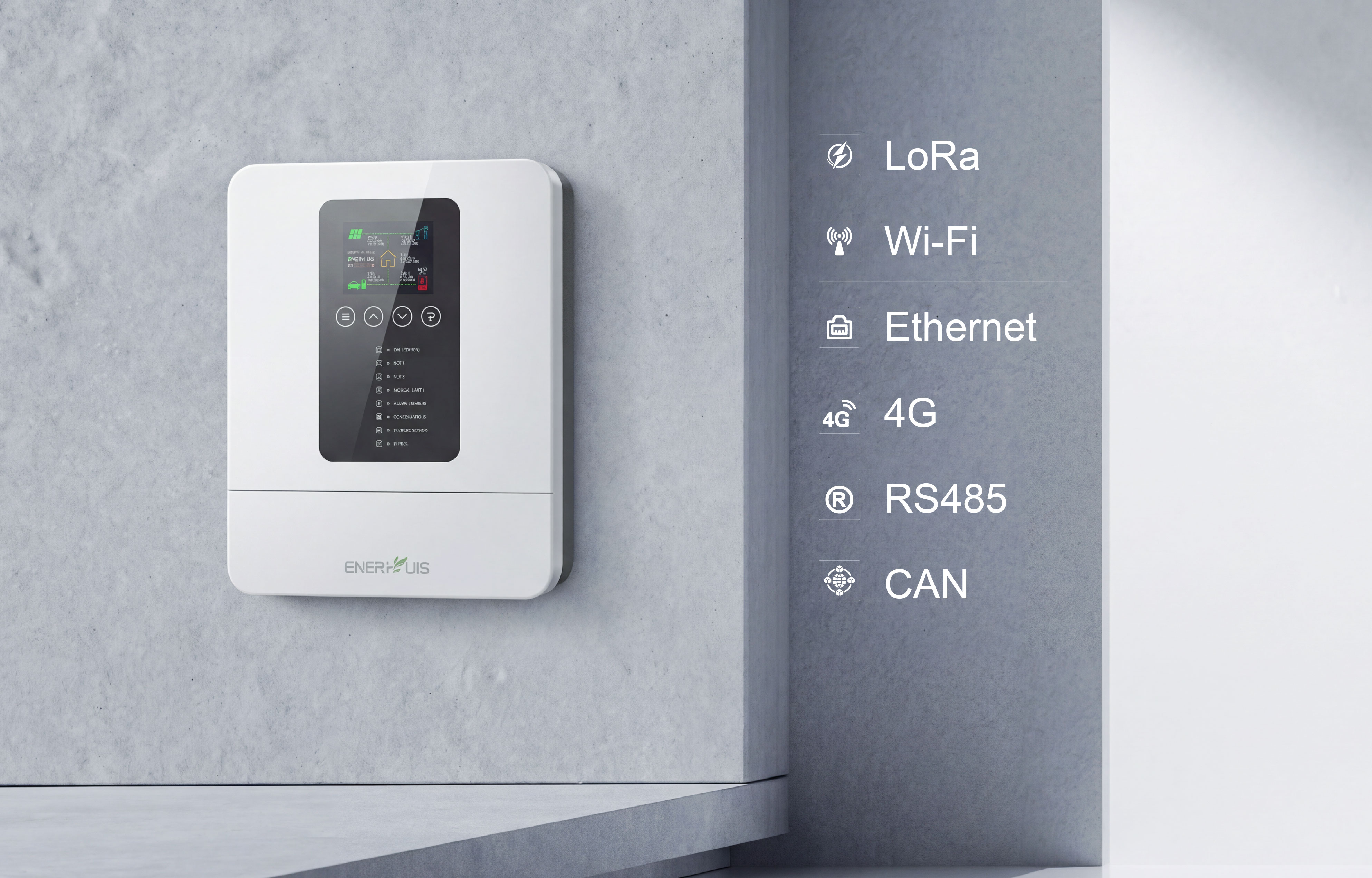

Wireless:
Wi-Fi (4G Optional)

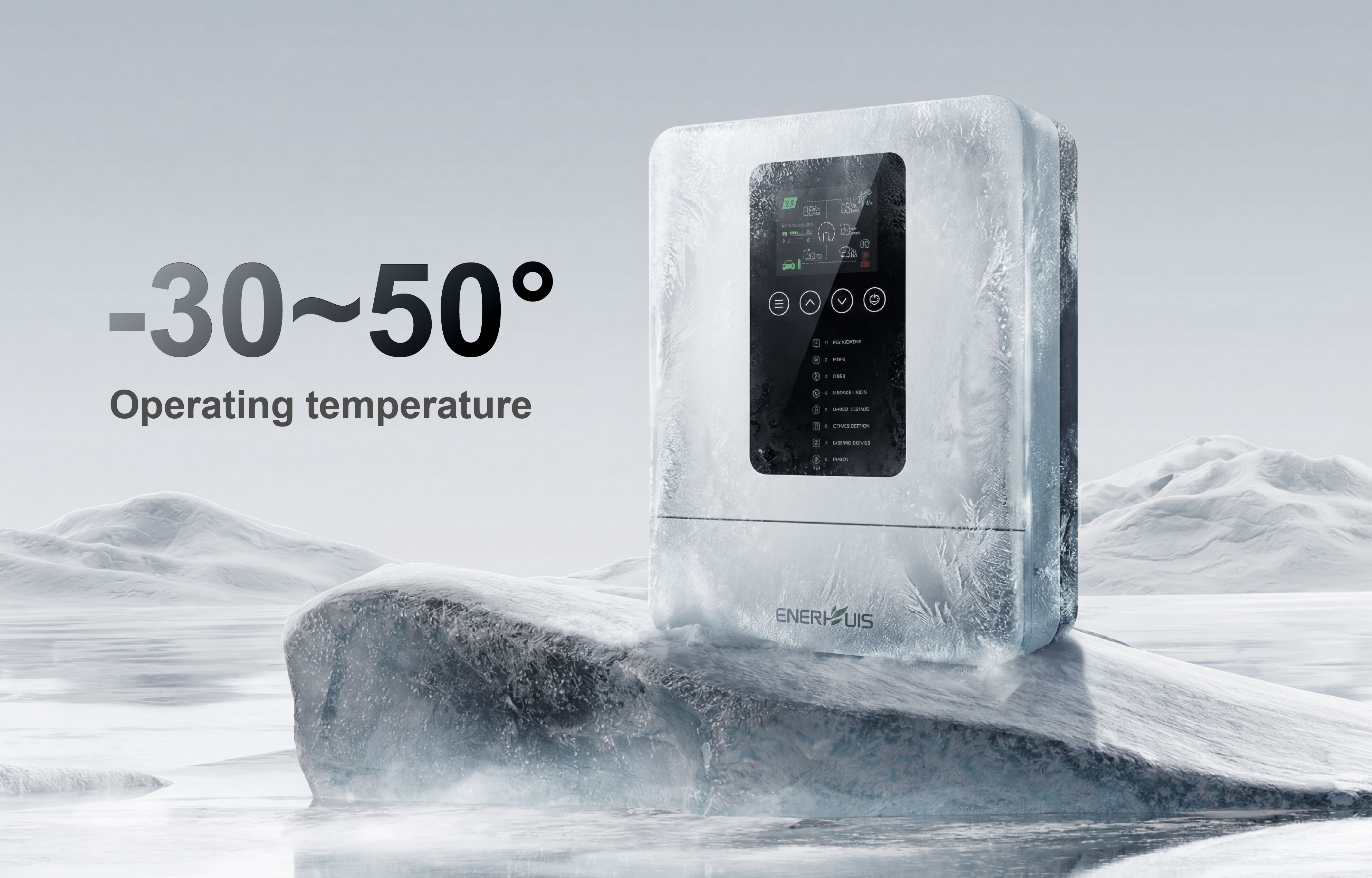

Operating Temperature:
-30~50℃
Internal communication:
LoRa
Interface::
RS485/CAN
Media:
UTP
Protocol:
MODBUS-RTU
Ingress Protection:
IP20
Cooling:
Natural cooling
Energy Management:
Support
Dimensions (W*H*D):
230*100*260mm
Weight:
4.9kg
Product Warranty:
2Years

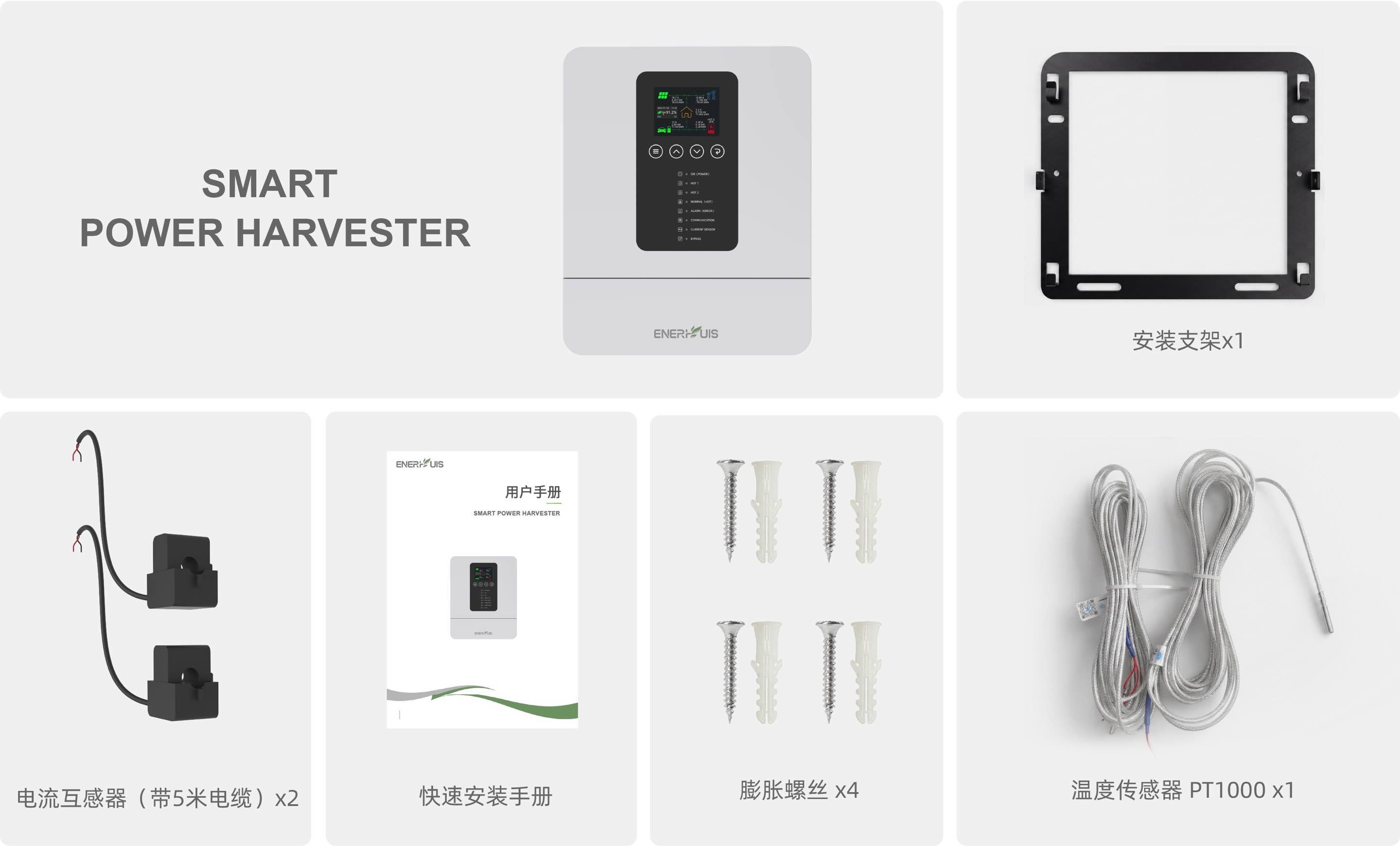

What's in the box?
FAQ
-
QWhen does the warranty start?
It begins from the date of the first installation or 6 months after the shipment from Enerhuis (whichever is earlier).
-
Qcan I still have the warranty if I purchase the product and install it abroad?
The product must be purchased and installed through the authorized channels of Enerhuis. For cross-border installations, written confirmation is required; otherwise, the warranty will be invalid.
-
QCan the product warranty be extended?
Yes. You can purchase an extended warranty service from the Enerhuis sales or service team within 24 months after the expiration of the original warranty period.
-
QWhat should I do if the product malfuncions during the warranty period?
Please call +86 0512-8186-6001 or send an email to sales@enerhuis.com.
You need to provide the product model, SN number, purchase voucher, and description of the fault, etc.
-
QWhat types of warranty services will Enerhuis provide?
We provide online support, on-site repair, factory repair, as well as replacement of components or the entire machine (for discontinued models, equivalent products of the same type will be provided).
-
QWhat situations are not covered by the warranty?
The products without the Enerhuis logo, expired warranty period, use of non-Enerhuis components or firmware, unauthorized operation/dismantling/modification, usage beyond standard limits, intentional damage, natural disasters or transportation damage.
