IC-CPD
EV MODE 2 CHARGER
-
![]()
Built-in 6mA DC RCD, ensure the safety of person
-
![]()
Fault self-test, ensure the safety o f car
-
![]()
Automatic identify input cables, ensure the safety o f power grid lines
-
![]()
Triple temperature protection, ensure safe use in all aspects
-
![]()
Intelligent match grid a n d car status, improve charging efficiency while ensuring safety
-
![]()
Multiple Protection
Technical Specifications
-
Virgo 3K-S-G/Libra 5H-P
-
Virgo 3K-S-G
-
Virgo 3K-S-G/Libra 5H-P

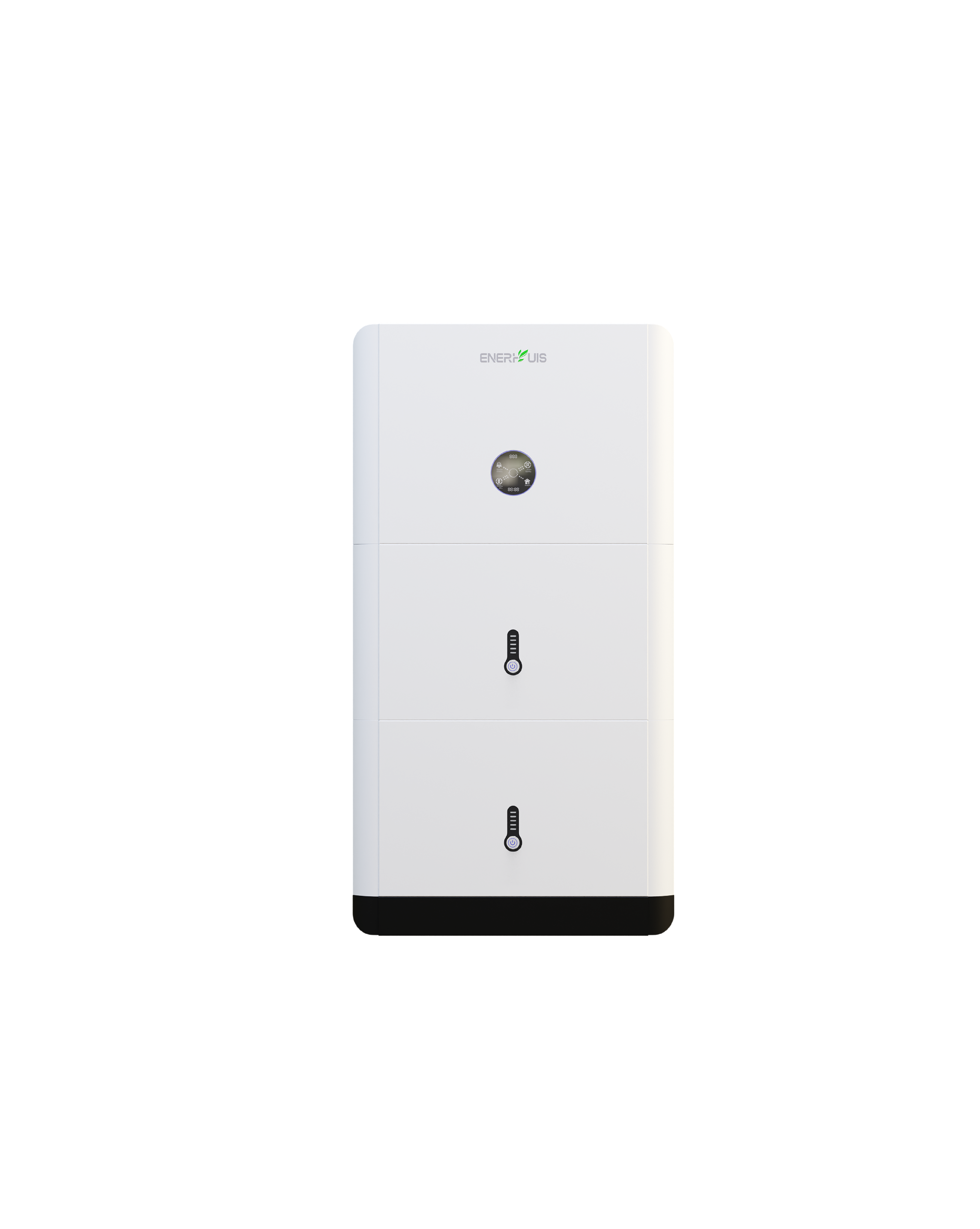

Residential Energy Storage System-
PV Terminal
-
Max input power(W):
8000
-
Max PV voltage(Vdc):
600
-
MPPT voltage Range(Vdc):
100~550
-
Rated voltage(Vdc):
360
-
Max input current(DC A):
16
-
Number of MPPTs:
2
-
PV Input Terminal
-
Max input power(W):
6000
-
Max continuous Input Current(AC A):
26.1
-
Max continuous Input Power（Grid to Battery) (W):
3000
-
Max continuous Input Current（Grid to Battery) (AC A):
13
-
AC Output Terminal
-
Rated output active power (W):
3000
-
Rated output current (AC A):
13
-
European Efficiency:
97.3%
-
Battery
-
Nominal energy (kWh):
5.12
-
Battery modules:
1
-
Rated Voltage (Vdc):
51.2
-
Max charging/discharging power (W):
2500
-
Max. Charging/Discharging Power (DC A):
50
-
-
Virgo 3K-S-G

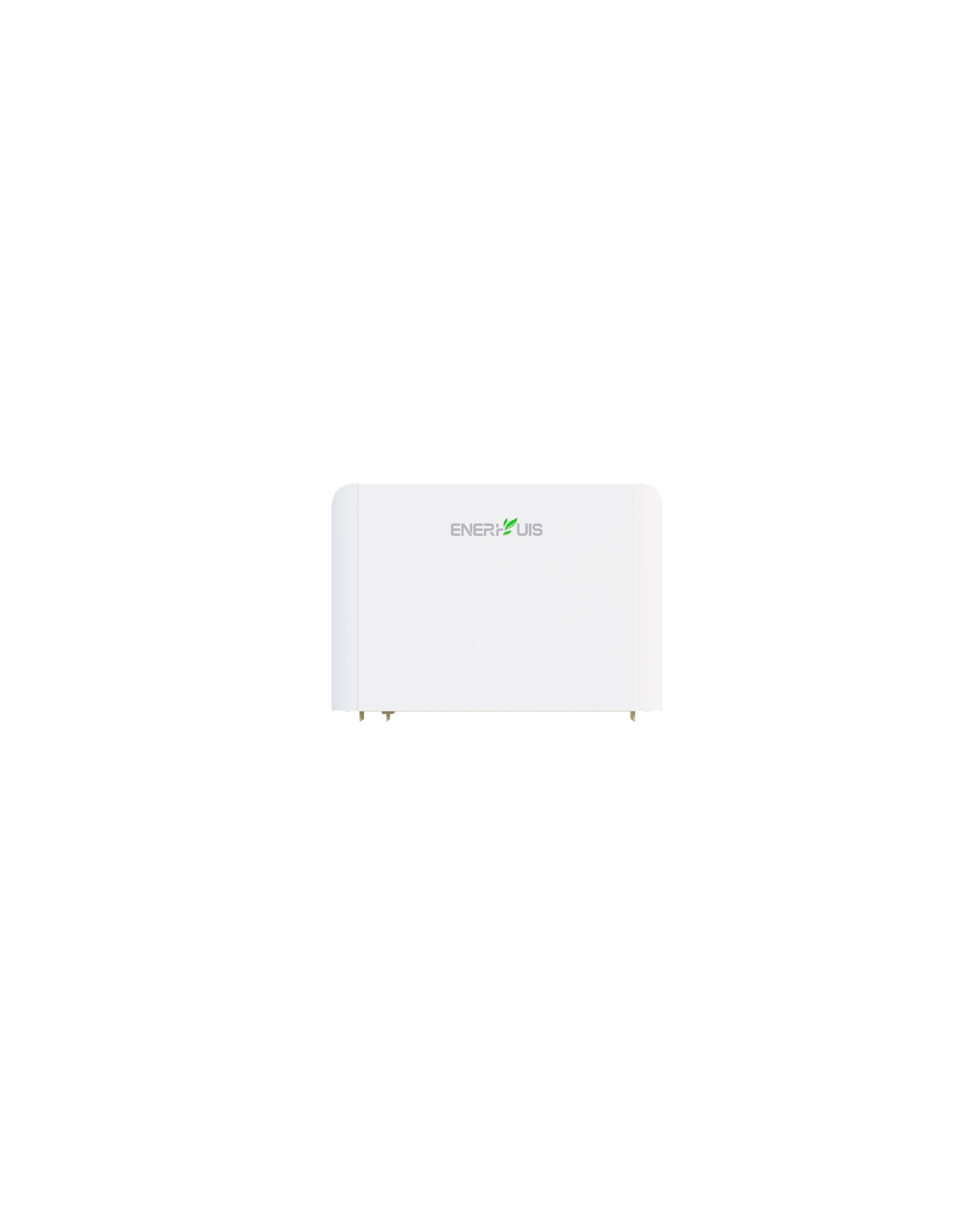

Residential Hybrid Energy Inverter-
PV Terminal
-
Max input power(W):
8000
-
Max PV voltage(Vdc):
600
-
MPPT voltage Range(Vdc):
100~550
-
Rated voltage(Vdc):
360
-
Max input current(DC A):
16
-
Number of MPPTs:
2
-
PV Input Terminal
-
Max input power(W):
6000
-
Max continuous Input Current(AC A):
26.1
-
Max continuous Input Power（Grid to Battery) (W):
3000
-
Max continuous Input Current（Grid to Battery) (AC A):
13
-
AC Output Terminal
-
Rated output active power (W):
3000
-
Rated output current (AC A):
13
-
Back Up Load Rating
-
Rated output power (W):
3000
-
Rated output current (AC A):
13
-
European Efficiency:
97.3%
-
Protection class:
IP66
-
Operation temperature (℃):
-25~+60 (＞40 Derate)
-
Installation:
Wall-mounted
-
