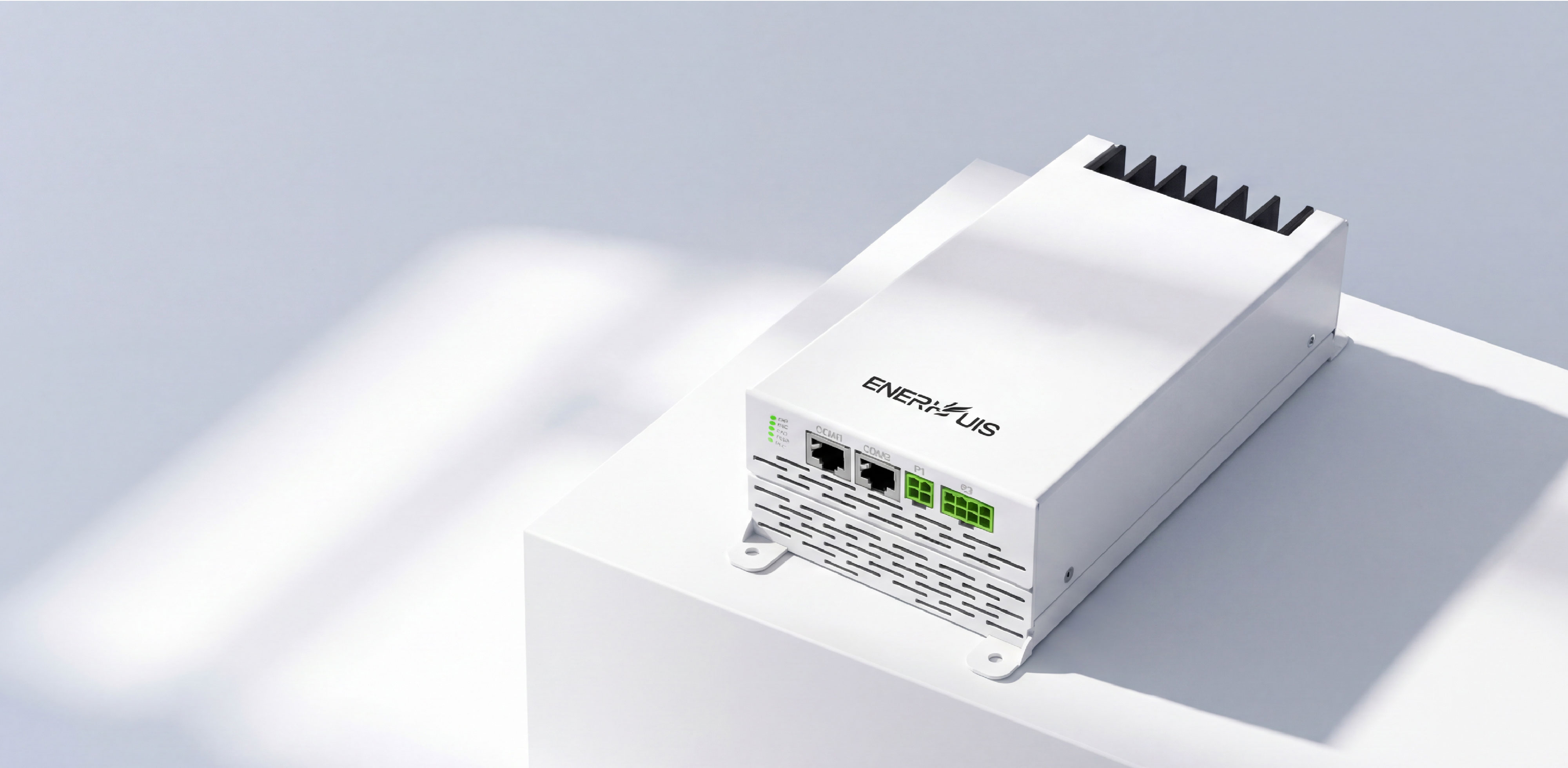

Industrial and Commercial Energy Storage Module Industrial and Commercial Energy Storage Module

Industrial and Commercial Energy Storage Module

SACC352231E1-5/10

IC-CPD
EV MODE 2 CHARGER


  • Built-in 6mA DC RCD, ensure the safety of person

  • Fault self-test, ensure the safety o f car

  • Automatic identify input cables, ensure the safety o f power grid lines

  • Triple temperature protection, ensure safe use in all aspects

  • Intelligent match grid a n d car status, improve charging efficiency while ensuring safety

  • Multiple Protection

Technical Specifications

  • EDCC702901C1

  • EDCC502152C1

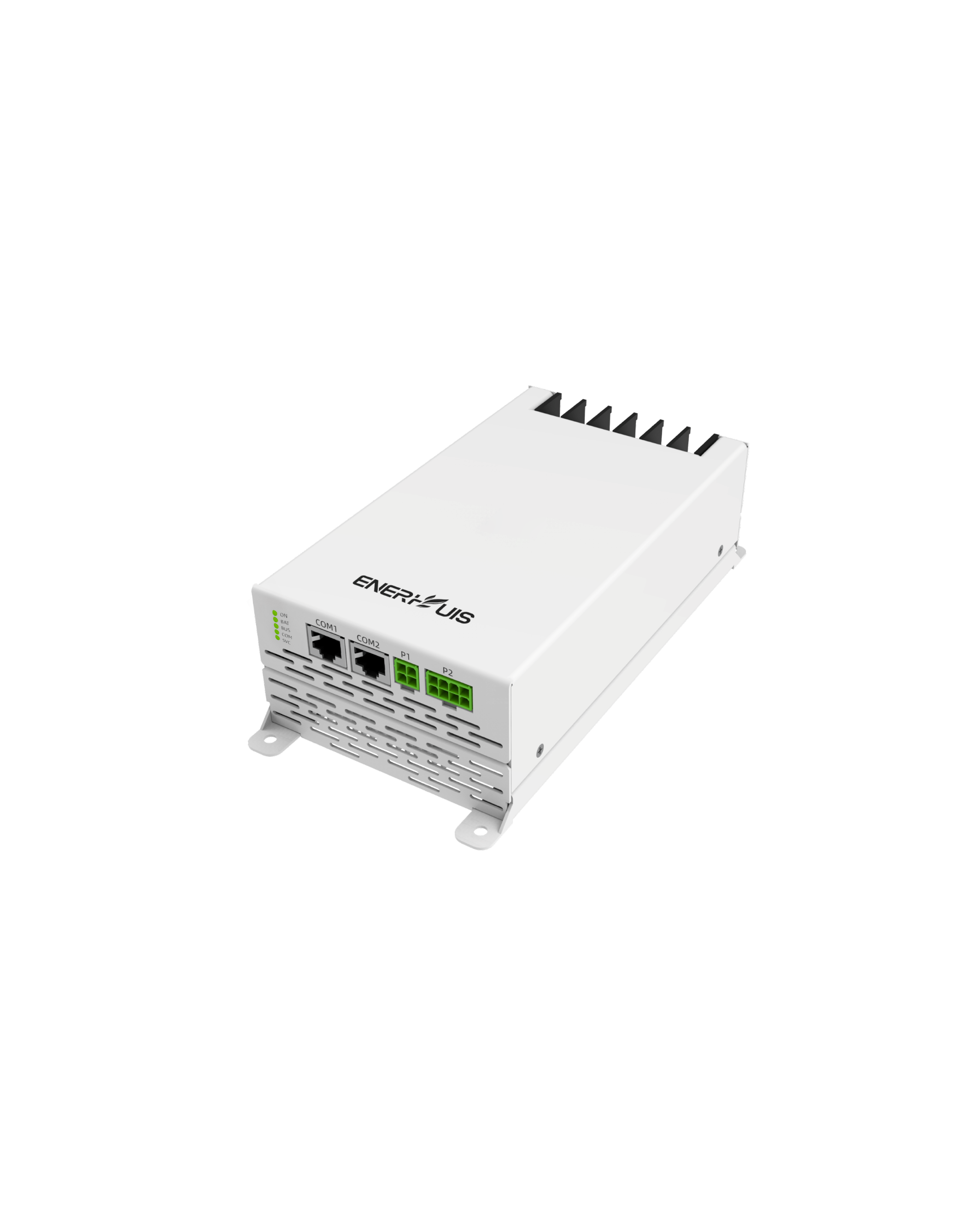

    EDCC702901C1
    Voltage Equalization Controller

    • Rated power (kW):

      7

    • Battery side

    • Max DC voltage (Vdc):

      900

    • Operating voltage range (Vdc):

      200~900

    • Max operating current (A):

      10

    • AC bus side

    • Max AC voltage (Vdc):

      900

    • Operating voltage range (Vdc):

      200~900

    • Max operating current (A):

      10

    • Max efficiency (%):

      99.00%

    • Protection :

      Electronic protection,Surge protection,Overheating protection,Overload protection

    • Dimensions(L*W*D)(mm):

      222*109*105 (metal plate + radiator)

    • Weight (kg):

      3

    • Cooling:

      smart fan

    • Installation:

      Wall-mounted

    • Communication:

      RS485, CAN

    • Connection:

      BMS, PCS, EMS

    • Isolation:

      non-transformer

    • Operating Temperature(℃):

      -40~+60 (＞50 reduction）

    • Noise (dB):

      ＜25

    Download
    Polaris_535_Flyer_en_GLB
    Polaris_535W_IM_Hoop_global

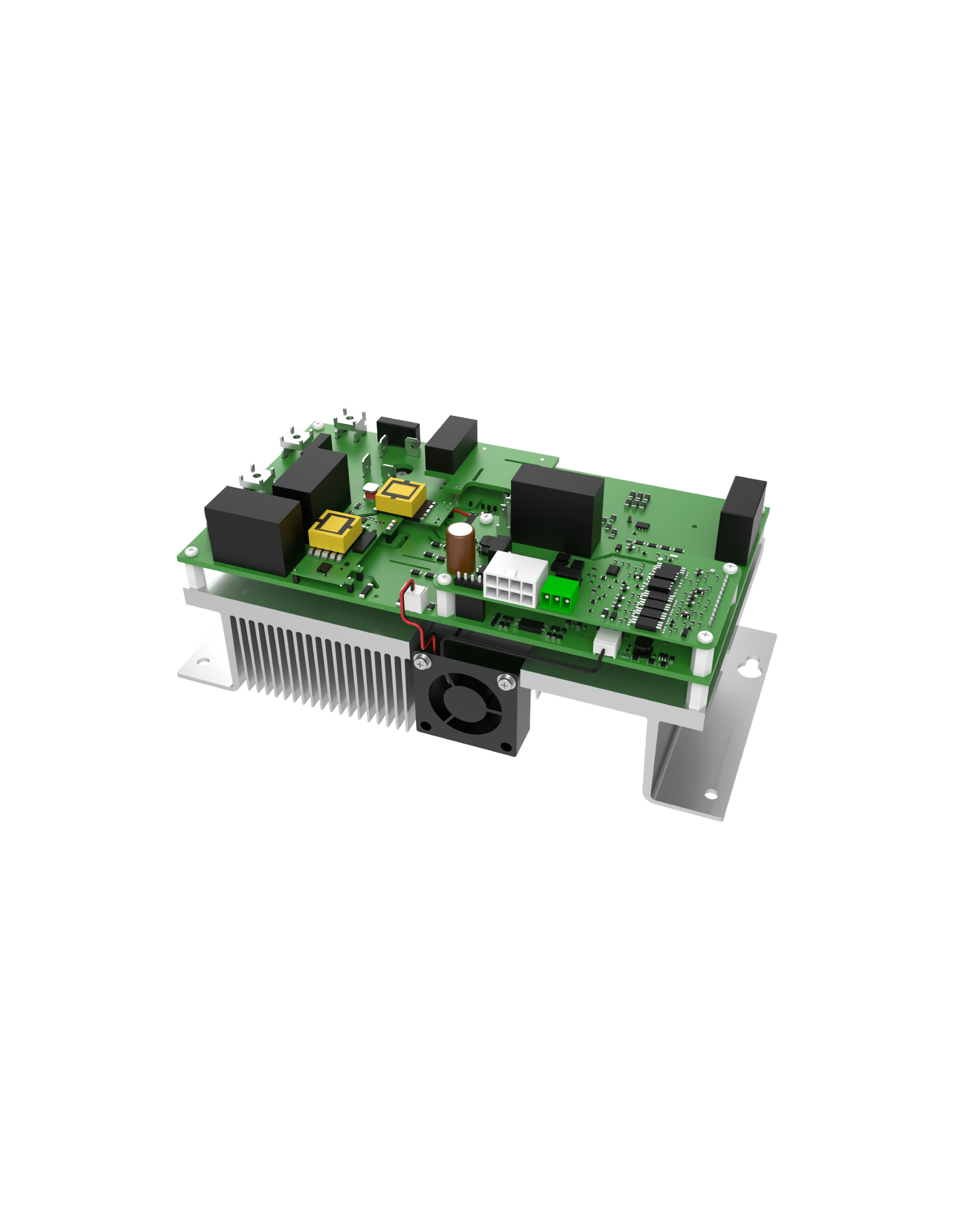

    EDCC502152C1

    In-service power replenishment module

    • Rated power (kW):

      5

    • Battery side

    • Max DC voltage (Vdc):

      1500

    • Operating voltage range (Vdc):

      300~1400

    • Max operating current (A):

      5(average)

    • Peak current (A):

      10

    • AC bus side

    • Max AC voltage (Vac):

      690*1.3

    • Long-term operating voltage range (Vac):

      690*（1±30%）

    • Max operating current (A):

      5(average)

    • Instantaneous voltage（Vdc):

      1830

    • Max efficiency (%):

      99.2

    • Protection :

      Over-temperature protection, Over-voltage protection, Over-current protection, Short-circuit protection, Battery under-voltage protection, Pre-charge timeout alarm, Power transistor fault detection, Over-voltage/over-current detection

    • Dimensions(L*W*D)(mm):

      223*110*88

    • Weight (kg):

      1.49

    • Cooling:

      smart fan

    • Installation:

      Wall-mounted

    • Communication:

      I/O, RS485

    • Isolation:

      non-transformer

    • Operating Temperature(℃):

      -20~+60

    Download
    Polaris_535_Flyer_en_GLB
    Polaris_535W_IM_Hoop_global
