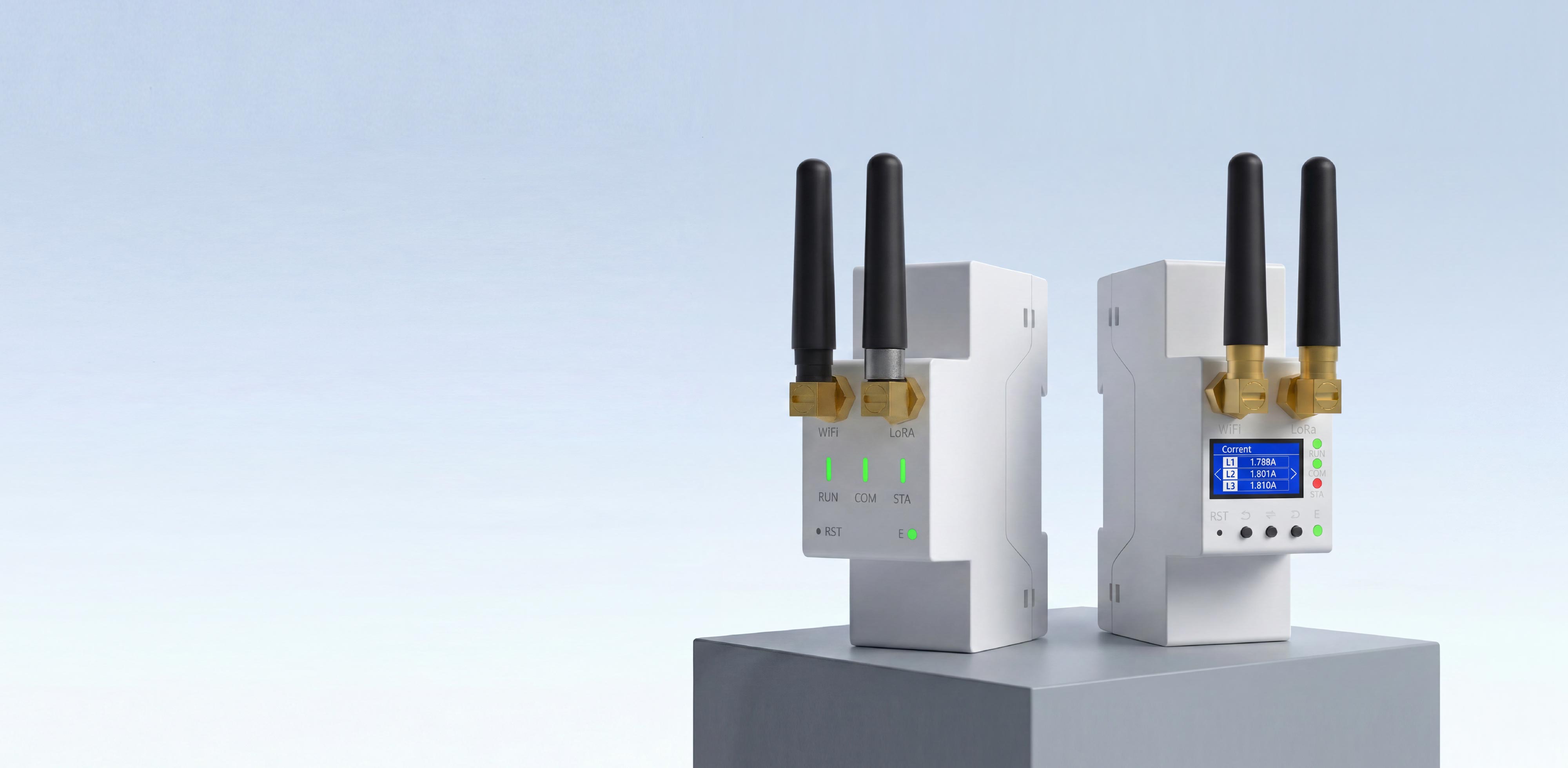

Smart Power Sensor Smart Power Sensor

Smart Power Sensor

SACC352231E1-5/10

IC-CPD
EV MODE 2 CHARGER


  • Built-in 6mA DC RCD, ensure the safety of person

  • Fault self-test, ensure the safety o f car

  • Automatic identify input cables, ensure the safety o f power grid lines

  • Triple temperature protection, ensure safe use in all aspects

  • Intelligent match grid a n d car status, improve charging efficiency while ensuring safety

  • Multiple Protection

Technical Specifications

  • SPSRxxx401E1-64/100

  • SPSRxxx231E1-64/100

  • SPSRxxx401S1-64/100

  • SPSRxxx231S1-64/100

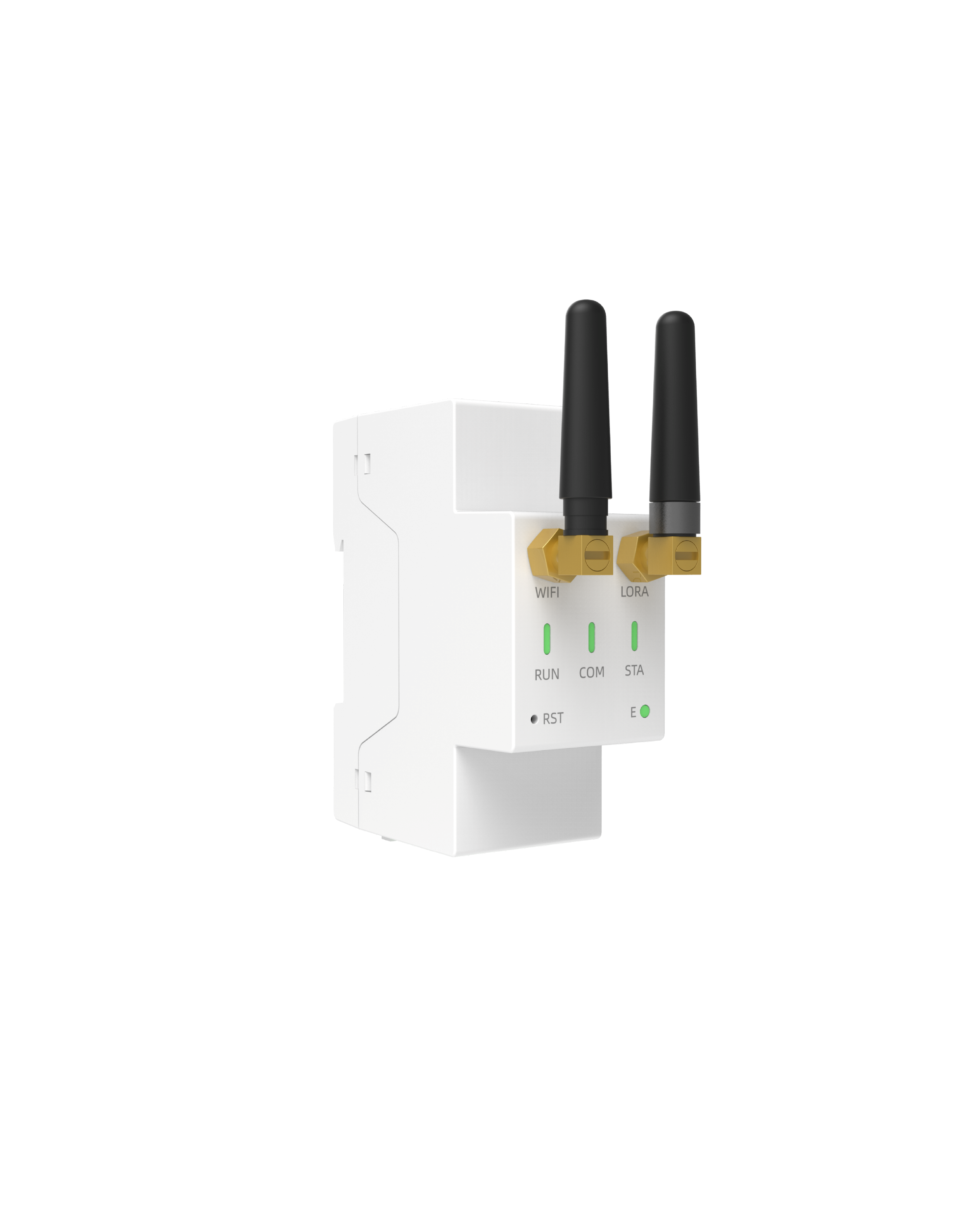

    SPSRxxx401E1-64/100

    • Rated voltage(Vac):

      400

    • Input voltage(Vac):

      85~265

    • Power consumption(VA):

      per phase＜1

    • External transformer:

      3CT 100A/40mA(5m)

    • Input current(A):

      64/100

    • Start current:

      4‰（1 level）

    • Energy positive:

      EPI / EPE

    • Electrical measurement:

      Voltage/Current/Power factor/Frequency/Active power/Reactive power/Apparent power

    • Active energy accuracy:

      AP Class1(IEC62053-22)

    • RP Class1(IEC62053-23)

    • Wireless:

      2.4GWi-Fi / 4G

    • Internal communication:

      LoRa

    • Interface:

      RS485 / CAN

    • Media:

      UTP

    • Protocol:

      MODBUS-RTU

    • Display:

      4*LED, Button

    • Dimensions(L*W*H)(mm):

      206*96*56

    • Weight (kg):

      0.15

    • Ingress Protection:

      IP20

    • Installation:

      35mm DIN Rail

    • Operating Temperature(℃):

      -25~+50

    Download
    Polaris_535_Flyer_en_GLB
    Polaris_535W_IM_Hoop_global
    SPSRxxx231E1-64/100

    • Rated voltage(Vac):

      230

    • Input voltage(Vac):

      85~265

    • Power consumption(VA):

      per phase＜1

    • External transformer:

      1CT 100A/40mA(5m)

    • Input current(A):

      64/100

    • Start current:

      4‰（1 level）

    • Energy positive:

      EPI / EPE

    • Electrical measurement:

      Voltage/Current/Power factor/Frequency/Active power/Reactive power/Apparent power

    • Active energy accuracy:

      AP Class1(IEC62053-22)

    • RP Class1(IEC62053-23)

    • Wireless:

      2.4GWi-Fi / 4G

    • Internal communication:

      LoRa

    • Interface:

      RS485 / CAN

    • Media:

      UTP

    • Protocol:

      MODBUS-RTU

    • Display:

      4*LED, Button

    • Dimensions(L*W*H)(mm):

      206*96*56

    • Weight (kg):

      0.15

    • Ingress Protection:

      IP20

    • Installation:

      35mm DIN Rail

    • Operating Temperature(℃):

      -25~+50

    Download
    Polaris_535_Flyer_en_GLB
    Polaris_535W_IM_Hoop_global
    SPSRxxx401S1-64/100

    • Rated voltage(Vac):

      400

    • Input voltage(Vac):

      85~265

    • Power consumption(VA):

      per phase＜1

    • External transformer:

      3CT 100A/40mA(5m)

    • Input current(A):

      64/100

    • Start current:

      4‰（1 level）

    • Energy positive:

      EPI / EPE

    • Electrical measurement:

      Voltage/Current/Power factor/Frequency/Active power/Reactive power/Apparent power

    • Active energy accuracy:

      AP Class1(IEC62053-22)

    • RP Class1(IEC62053-23)

    • Wireless:

      2.4GWi-Fi / 4G

    • Internal communication:

      LoRa

    • Interface:

      RS485 / CAN

    • Media:

      UTP

    • Protocol:

      MODBUS-RTU

    • Display:

      4LED, 4Button, LCD

    • Dimensions(L*W*H)(mm):

      206*96*56

    • Weight (kg):

      0.15

    • Ingress Protection:

      IP20

    • Installation:

      35mm DIN Rail

    • Operating Temperature(℃):

      -25~+50

    Download
    Polaris_535_Flyer_en_GLB
    Polaris_535W_IM_Hoop_global

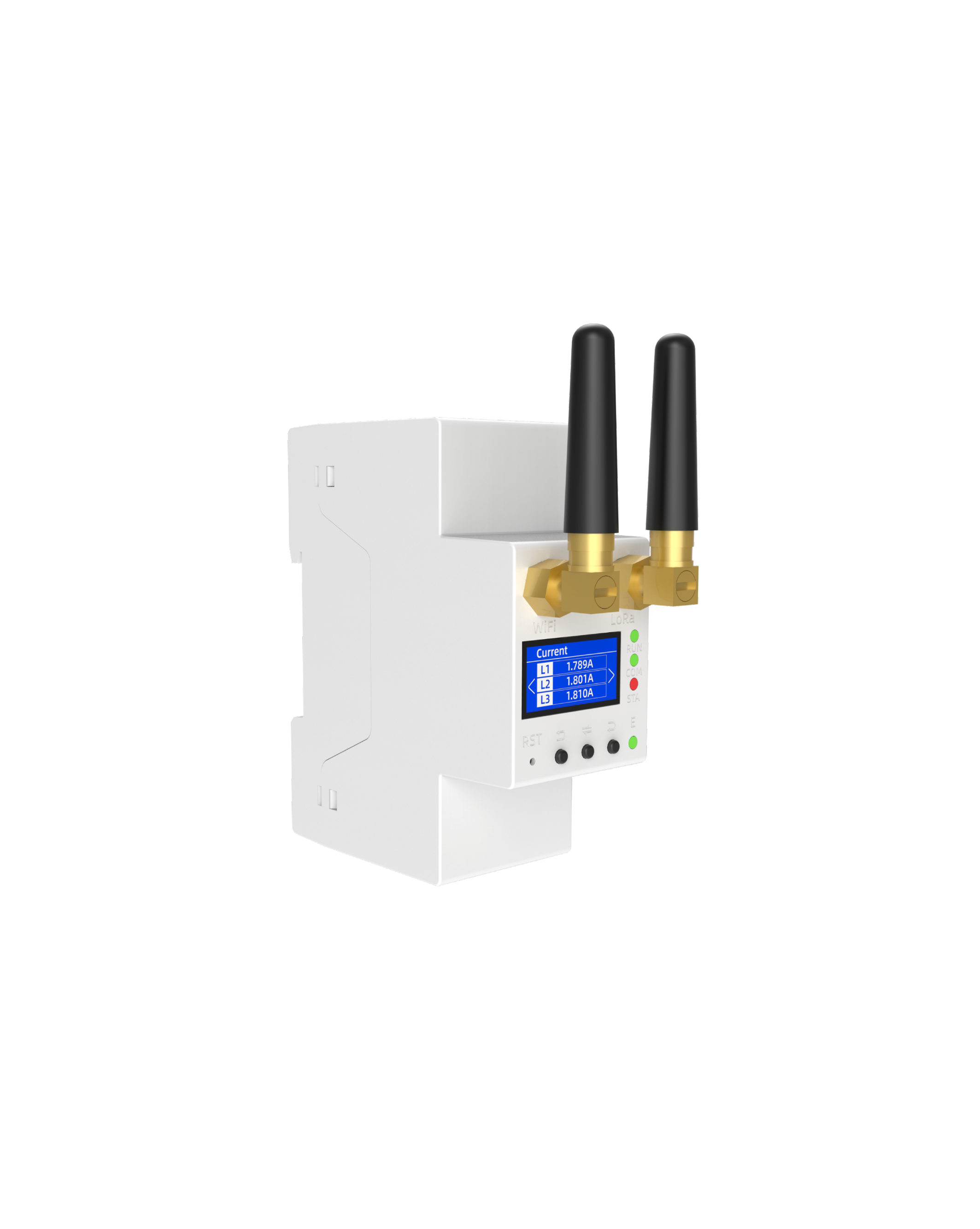

    SPSRxxx231S1-64/100

    • Rated voltage(Vac):

      230

    • Input voltage(Vac):

      85~265

    • Power consumption(VA):

      per phase＜1

    • External transformer:

      1CT 100A/40mA(5m)

    • Input current(A):

      64/100

    • Start current:

      4‰（1 level）

    • Energy positive:

      EPI / EPE

    • Electrical measurement:

      Voltage/Current/Power factor/Frequency/Active power/Reactive power/Apparent power

    • Active energy accuracy:

      AP Class1(IEC62053-22)

    • RP Class1(IEC62053-23)

    • Wireless:

      2.4GWi-Fi / 4G

    • Internal communication:

      LoRa

    • Interface:

      RS485 / CAN

    • Media:

      UTP

    • Protocol:

      MODBUS-RTU

    • Display:

      4LED, 4Button, LCD

    • Dimensions(L*W*H)(mm):

      206*96*56

    • Weight (kg):

      0.15

    • Ingress Protection:

      IP20

    • Installation:

      35mm DIN Rail

    • Operating Temperature(℃):

      -25~+50

    Download
    Polaris_535_Flyer_en_GLB
    Polaris_535W_IM_Hoop_global
