IC-CPD
EV MODE 2 CHARGER
-
![]()
Built-in 6mA DC RCD, ensure the safety of person
-
![]()
Fault self-test, ensure the safety o f car
-
![]()
Automatic identify input cables, ensure the safety o f power grid lines
-
![]()
Triple temperature protection, ensure safe use in all aspects
-
![]()
Intelligent match grid and car status, improve charging efficiency while ensuring safety
-
![]()
Multiple Protection
Technical Specifications
-
EACC232231C1-5/10
-
EACC352231C1-5/10
-
SACC352231E1-5/10
-
SACC352231S1-5/10
-
SACC352231S2-5/10
-

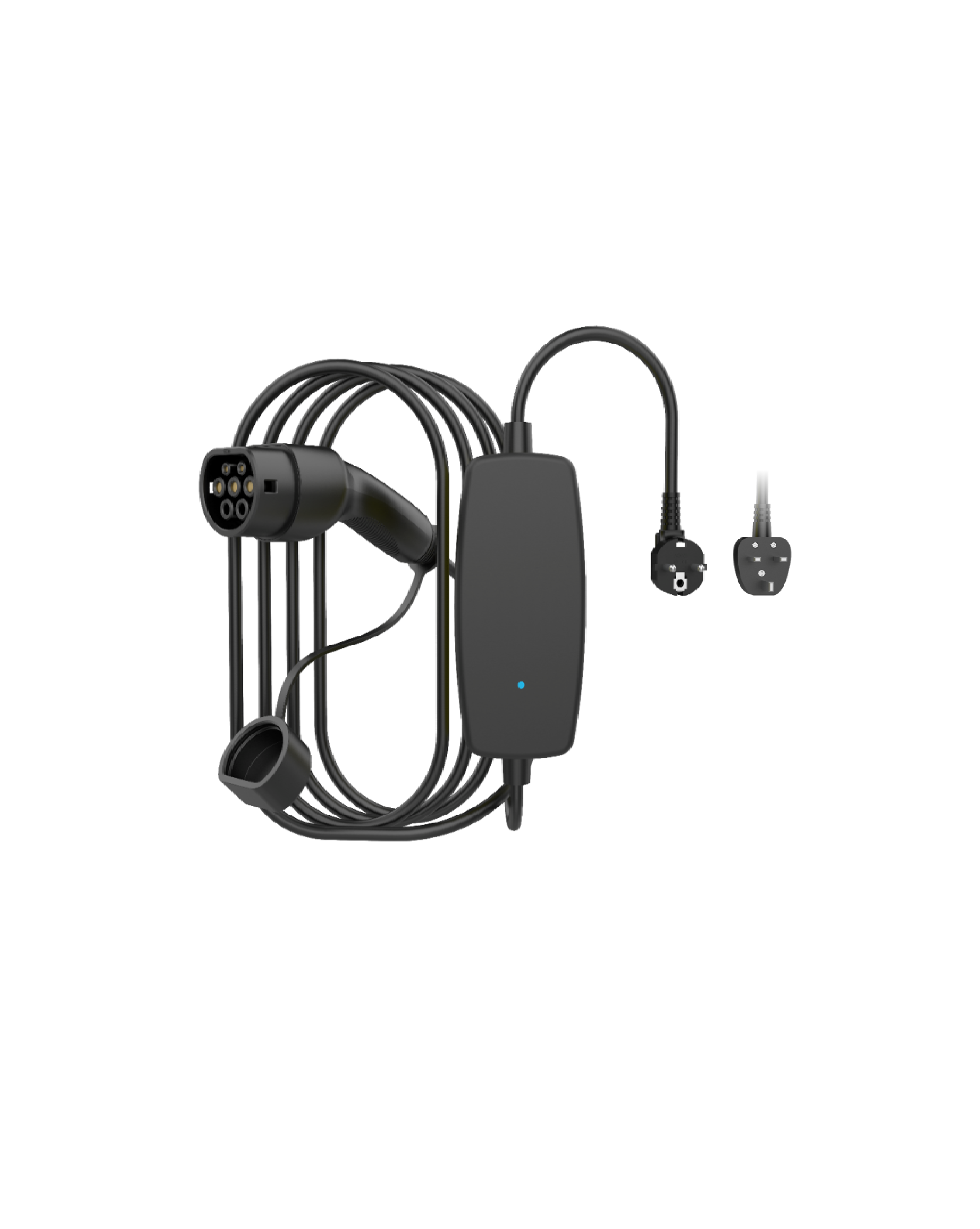

EACC232231C1-5/10
-
Voltage(Vac):
230±10%
-
Current:
10A
-
Max Power (kW) :
2.3
-
Length(m) :
5/10
-
Material:
PC+ABS
-
Display :
3 Color LED
-
Dimensions(L*W*H)(mm):
206*96*56
-
Weight (kg):
≤1.8(5m)/≤2.3)(10m)
-
Operating Temperature(℃):
-30~+50
-
Ingress Protection:
IP65
-
Crushing Strength(kN):
≤11
-
Service Life(times):
10000
-
Cooling:
Natural cooling
-
Stand-by Power consumption(W):
＜2
-
Product Warranty:
2 years
-
-
EACC352231C1-5/10
-
Voltage(Vac):
230±10%
-
Current:
16A
-
Max Power (kW) :
3.5
-
Length(m) :
5/10
-
Material:
PC+ABS
-
Display :
3 Color LED
-
Dimensions(L*W*H)(mm):
206*96*56
-
Weight (kg):
≤1.8(5m)/≤2.3)(10m)
-
Operating Temperature(℃):
-30~+50
-
Ingress Protection:
IP65
-
Crushing Strength(kN):
≤11
-
Service Life(times):
10000
-
Cooling:
Natural cooling
-
Stand-by Power consumption(W):
＜2
-
Product Warranty:
2 years
-
-

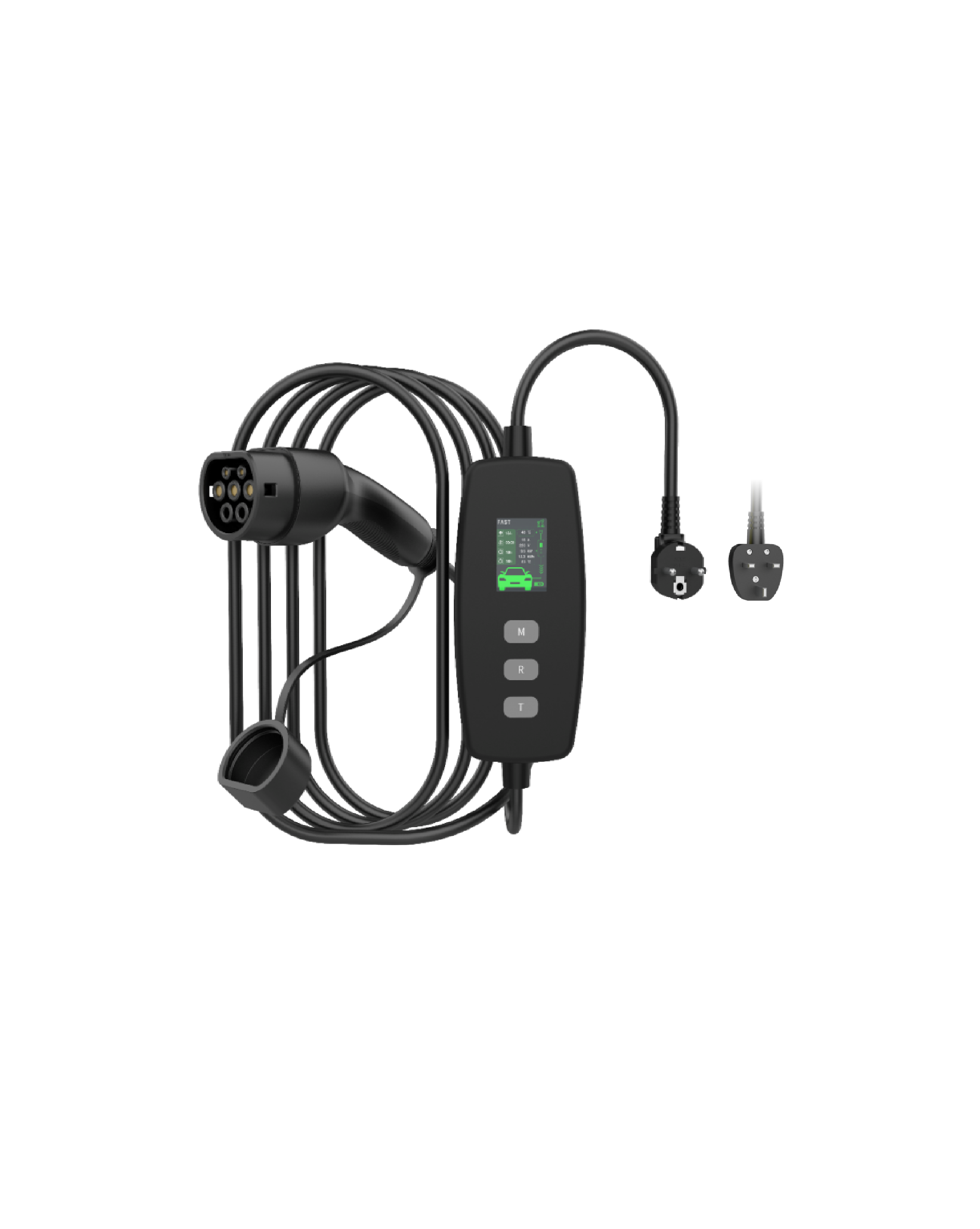

SACC352231E1-5/10
-
Voltage(Vac):
230±10%
-
Current:
16A
-
Max Power (kW) :
3.5
-
Length(m) :
5/10
-
Material:
PC+ABS
-
Display :
2.4‘ TFT Display Screen
-
Dimensions(L*W*H)(mm):
206*96*56
-
Weight (kg):
≤1.8(5m)/≤2.3)(10m)
-
Operating Temperature(℃):
-30~+50
-
Ingress Protection:
IP65
-
Crushing Strength(kN):
≤11
-
Service Life(times):
10000
-
Cooling:
Natural cooling
-
Stand-by Power consumption(W):
＜2
-
Product Warranty:
2 years
-
-

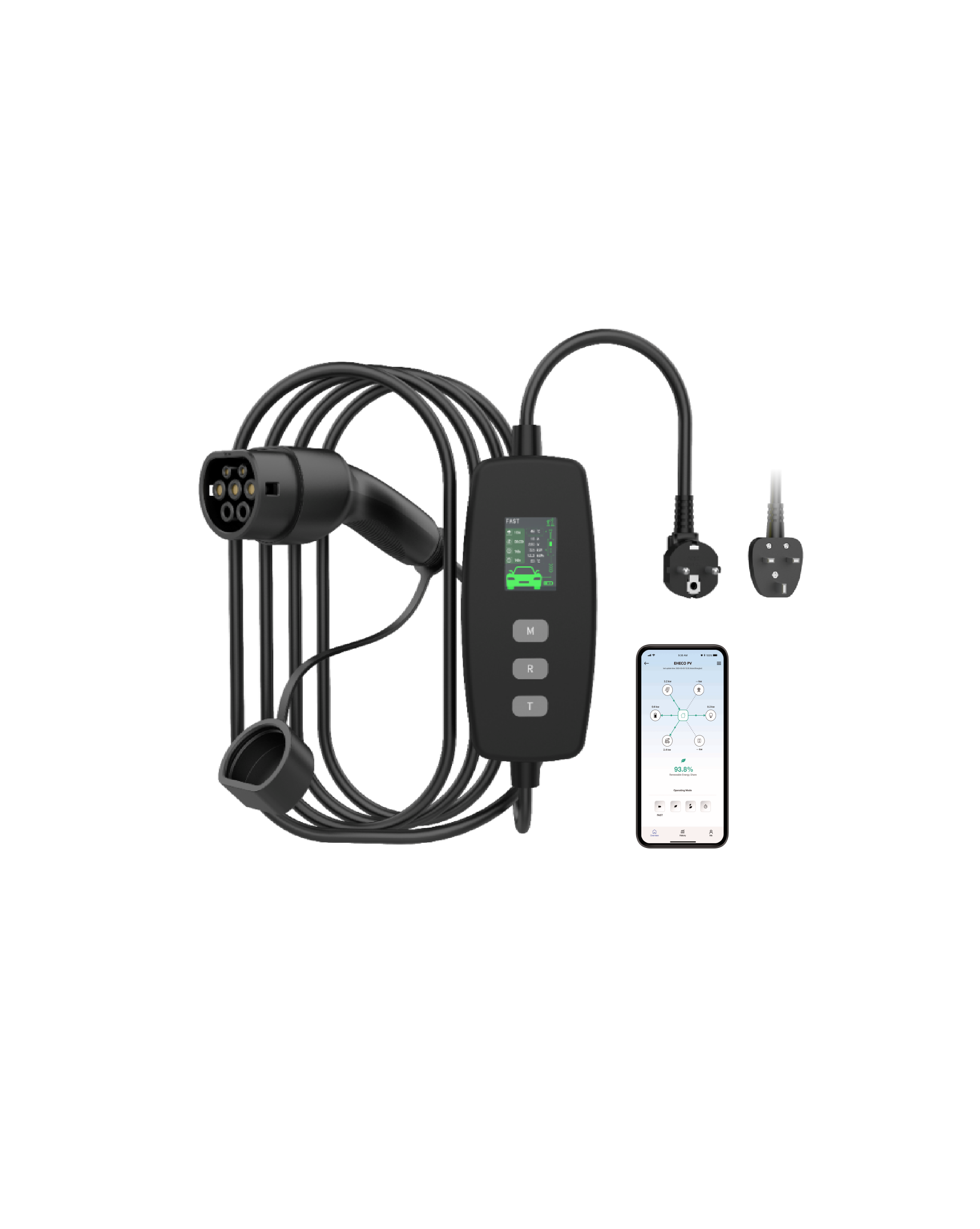

SACC352231S1-5/10
-
Voltage(Vac):
230±10%
-
Current:
8A/10A/13A/16A/Auto
-
Max Power (kW) :
3.5
-
Length(m) :
5/10
-
Material:
PC+ABS
-
Display :
2.4‘ TFT Display Screen
-
Buttons & Swith:
Control Buttons
-
Way of Starting:
Plug & Charge (Set Mode)
-
Communication:
LoRa/Wi-Fi (4G)
-
Installation:
Protable/Wall-mounted
-
Dimensions(L*W*H)(mm):
206*96*56
-
Weight (kg):
≤1.8(5m)/≤2.3)(10m)
-
Operating Temperature(℃):
-30~+50
-
Ingress Protection:
IP65
-
Crushing Strength(kN):
≤11
-
Service Life(times):
10000
-
Cooling:
Natural cooling
-
Stand-by Power consumption(W):
＜2
-
Product Warranty:
2 years
-
-

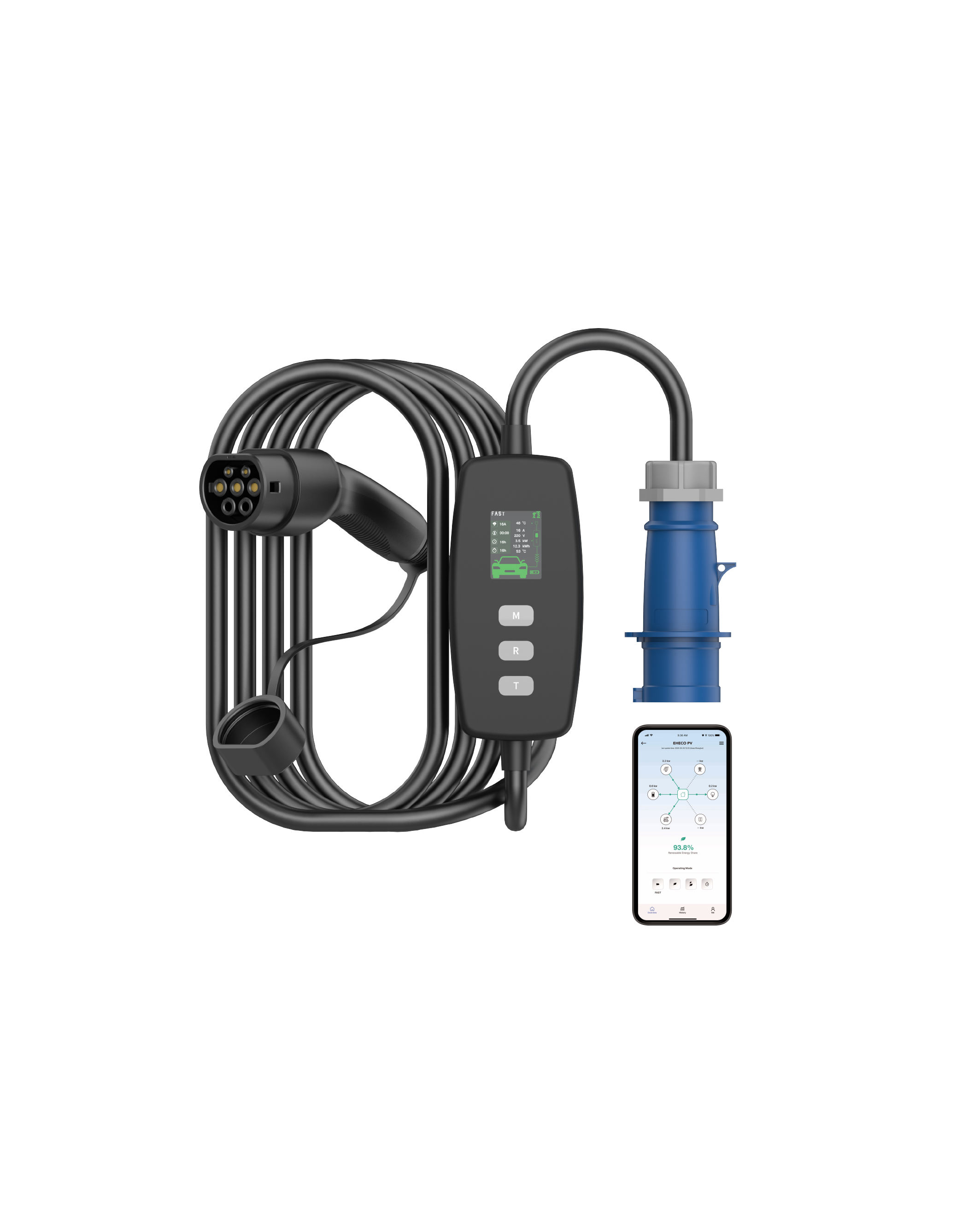

SACC352231S2-5/10
-
Voltage(Vac):
230±10%
-
Current:
8A/10A/13A/16A/32A/Auto
-
Max Power (kW) :
7
-
Length(m) :
5/10
-
Material:
PC+ABS
-
Display :
2.4‘ TFT Display Screen
-
Buttons & Swith:
Control Buttons
-
Way of Starting:
Plug & Charge (Set Mode)/NFC
-
Communication:
NFC/BT/LoRa/Wi-Fi (4G)
-
Installation:
Wall-mounted
-
Dimensions(L*W*H)(mm):
206*96*56
-
Weight (kg):
≤2.0(5m)/≤2.5(10m)
-
Operating Temperature(℃):
-30~+50
-
Ingress Protection:
IP65
-
Crushing Strength(kN):
≤11
-
Service Life(times):
10000
-
Cooling:
Natural cooling
-
Stand-by Power consumption(W):
＜2
-
Product Warranty:
2 years
-
-
